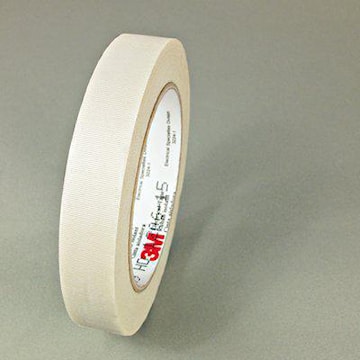

Scotch® 69 Glass Cloth Electrical Tape is a white glass cloth tape with a high-temperature, pressure-sensitive, silicone adhesive. It is designed for use in 600 volt dry location applications including motors and transformers with and without varnish coating. The thermosetting adhesive helps provide an increased bond once applied in areas of high ambient temperatures and also provides elevated temperature performance up to Class N 392°F (200° C) temperature rating. Scotch® 69 Glass Cloth Electrical Tape is UL Recognized (file E17385), CSA certified (file LR93411) and meets the requirements of Military Specification No. Mil-I-19166C.
3me 69-2
3M 69-2X36 Scotch® Glass Cloth Electrical Tape 36 yd Lx 2 in W 7 mil White Glass Cloth
Price
$215.09
/ RL
Inventory
Available for backorder
Unavailable for pick up
Burlington
Manufacturer:3M
Manufacturer #:69-2X36
Description
Specifications
| Brand Name | 3M | Sub Brand | Scotch® |
| Item Name | Glass Cloth Electrical Tape | Length | 36 yd |
| Width | 2 in | Thickness | 7 mil |
| Color | White | Series | 69 |
| Core | 3 in | Adhesive Material | Silicone |
| Backing Material | Glass Cloth | Adhesion Strength | 40 oz/in |
| Dielectric Strength | 3000 V | Temperature Rating | 200 °C |
| Standards | Military Specification MIL-I-19166C, UL File Number E17385, CSA Certified File Number LR93411, UL510 Flammability Rating, RoHS Compliant | Application | Insulating Electric and Induction-Type Furnace Power Supply Leads, Reinsulating and Repairing Coils on Mining Machines, Especially Suited to High-Temperature Applications |
| UPC | 051138491994 |
Packages
| RL - 1 RL PER RL | CA - 12 ROLLS/CASE |
