CSB 10-31993

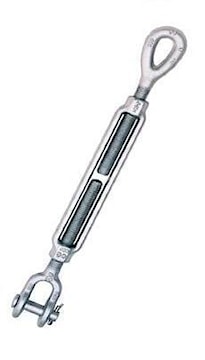

CROSBY CANADA TURNBUCKLE JAW & EYE-HG227 5/8X6IN
Available for Backorder
Manufacturer:CROSBY CANADA
Manufacturer #:
Description
Jaw and eye turnbuckle made of hot dip galvanized steel. End fittings are quenched and tempered or normalized, bodies heat treated by normalizing. Turnbuckle eyes are forged elongated, by design, to maximize easy attachment in system and minimize stress in the eye. Turnbuckle hooks are forged with a greater cross sectional area that results in a stronger hook with better fatigue properties. Modified UNJ thread on end fittings for improved fatigue properties. Body has UNC threads.
Specifications
| Take-Up | 152 mm | Thread Size | 15.9 mm |
| Marketing Description | Jaw and eye turnbuckle made of hot dip galvanized steel. End fittings are quenched and tempered or normalized, bodies heat treated by normalizing. Turnbuckle eyes are forged elongated, by design, to maximize easy attachment in system and minimize stress in the eye. Turnbuckle hooks are forged with a greater cross sectional area that results in a stronger hook with better fatigue properties. Modified UNJ thread on end fittings for improved fatigue properties. Body has UNC threads. | Product Type | 10 |
| Length | 413 mm | Standards | ASME B30.26, Federal Specification FF-T-791b, Type 1, Form 1 - Class 4 and ASTM F-1145, Fatigue Rated |
| Working Load Limit | 1.59 t | Material | Steel |
| UNSPSC | 31162405 | Series/Model | HG-227 |
| Brand Name | Crosby | Application | For Straight or In-Line Pull Only |
| Item Name | Jaw and Eye Turnbuckle | Weight | 1.35 kg |
| Finish | Hot-Dipped Galvanized | Automated Search Title | Jaw and Eye Turnbuckle Steel 1.59 t Working Load Limit |
Packages
EA - EA
