CSB 10-18428

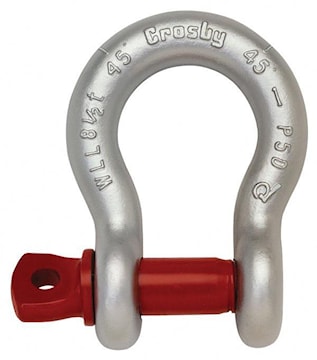

CROSBY CANADA 1018428 SHACKLE ANCHOR SCREW PIN-S209 3/8IN 1T
In Stock
Manufacturer:CROSBY CANADA
Manufacturer #:1018428
Description
Screw pin shackle is forged-quenched and tempered with alloy pins. Working load limit and grade 6 permanently shown on every shackle. Self coloured and fatigue rated. Approved for use at -40 to 204°C.
Specifications
Pin Diameter | 0.44 in | Marketing Description | Screw pin shackle is forged-quenched and tempered with alloy pins. Working load limit and grade 6 permanently shown on every shackle. Self coloured and fatigue rated. Approved for use at -40 to 204°C. |
Product Type | 10 | Pin Type | Screw |
Inner Width | 1.03 in | Standards | ASME B30.26, DNV2.7-1, ABS 2007 1-11-17.7, CE Certified |
Series | S-209 | Body Material | Carbon Steel |
Overall Length | 2.49 in | Working Load Limit | 1 t |
Eye Outer Size | 0.91 in | Pin Material | Carbon Steel |
UNSPSC | 24101641 | Overall Width | 2.02 in |
Brand Name | Crosby | Opening Size | 0.66 in |
Application | For Tie Down, Towing, Suspension or Lifting Applications | Item Name | Anchor Shackle |
Inner Length | 1.44 in | Finish | Red Painted |
Automated Search Title | Anchor Shackle 3/8 in 1 t Working Load Limit Carbon Steel Red Painted | Size | 3/8 in |
Packages
EA - EA
