Screw pin shackle is forged-quenched and tempered with alloy pins. Working load limit and grade 6 permanently shown on every shackle. Self coloured and fatigue rated. Approved for use at -40 to 204°C.
csb 10-18400

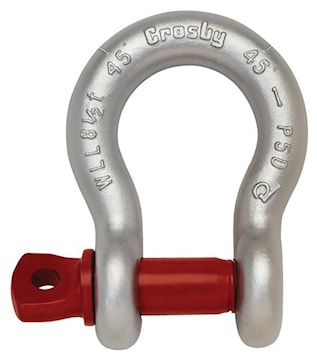

CROSBY 1018400 Anchor Shackle 5/16 in 0.75 t Working Load Limit Carbon Steel Red Painted
Price
$12.63
/ EA
Inventory
Available for backorder
Unavailable for pick up
Burlington
Manufacturer:CROSBY
Manufacturer #:1018400
Description
Specifications
| Brand Name | Crosby | Item Name | Anchor Shackle |
| Size | 5/16 in | Pin Diameter | 0.38 in |
| Pin Type | Screw | Finish | Red Painted |
| Series | S-209 | Working Load Limit | 0.75 t |
| Inner Length | 1.22 in | Inner Width | 0.84 in |
| Opening Size | 0.53 in | Eye Outer Size | 3/4 in |
| Overall Length | 2.09 in | Overall Width | 1.71 in |
| Body Material | Carbon Steel | Pin Material | Carbon Steel |
| Standards | ASME B30.26, DNV2.7-1, ABS 2007 1-11-17.7, CE Certified | Application | For Tie Down, Towing, Suspension or Lifting Applications |
Packages
| EA - EA |
