3mh eps30014bk4
3M EPS300-1/4-BK-48 Heat Shrink Tubing Flexible, Adhesive-Lined 3:1 ratio 1/4 in diameter 48 in L Black
3mh eps30014bk4
3M EPS300-1/4-BK-48 Heat Shrink Tubing Flexible, Adhesive-Lined 3:1 ratio 1/4 in diameter 48 in L Black
Price
$21.25
/ EA
Inventory
Available for delivery
Unavailable for pick up
Bonnyville
Manufacturer:3M
Manufacturer #:EPS300-1/4-BK-48
Description

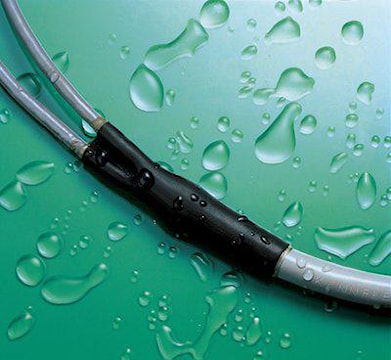

3M™ Tubing EPS 300 is a thin-wall tubing offering the advantages of integral, dual wall construction. The tubing is made from flame-retardant, flexible polyolefin-lined with an internal layer of special thermoplastic adhesive. The heat shrinkable outer wall is selectively irradiation cross-linked, while the adhesive maintains high flow and excellent adhesion characteristics.
Specifications
| Brand Name | 3M | Item Name | Heat Shrink Tubing |
| Type | Flexible, Adhesive-Lined | Inner Diameter Expanded | 1/4 in |
| Inner Diameter Recovered | 0.08 in | Wall Thickness Recovered | 0.04 in |
| Length | 48 in | Material | Polyolefin |
| Series | EPS-300 | Wall Type | Thin |
| Shrink Ratio | 3:1 | Temperature Rating | -55 to 110 °C |
| Shrink Temperature | 121 °C | Tensile Strength | 2100 lb/in² |
| Color | Black | Standards | UL File Number E157227, CSA File Number LR38227 |
| Application | Automotive, Truck and Marine, Electronic Components, Wire Splices, Wire Bundles and Harness Breakouts | UPC | 051128597293 |
Packages
| EA - EA | CA - 12 EA/CASE (48 FT) |
