RLB LPJ-60SP

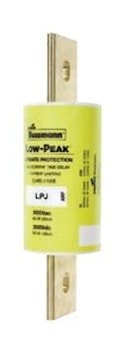

BREWS SUPPLY LTD. LPJ-60SP FUSE TD 60A 600V-LOW PEAK CLASS J
In Stock
Manufacturer:BREWS SUPPLY LTD.
Manufacturer #:LPJ-60SP
Description
Dual-element, time-delay fuse, 10 seconds (minimum) at 500% rated amps. Separate overload and short-circuit elements provide time delay for sizing of high inrush loads linked with Class J current limitation. Selective coordination ratio of 2:1 (within low-peak fuse family) prevents electrical shutdowns from extending beyond the failed circuit.
Specifications
Amperage Rating | 60 A | Interrupt Rating | 300 kA at 600 VAC, 100 kA at 300 VDC |
Marketing Description | Dual-element, time-delay fuse, 10 seconds (minimum) at 500% rated amps. Separate overload and short-circuit elements provide time delay for sizing of high inrush loads linked with Class J current limitation. Selective coordination ratio of 2:1 (within low-peak fuse family) prevents electrical shutdowns from extending beyond the failed circuit. | Product Type | 10 |
Standards | CE, UL Listed, Guide JFHR, File E56412, CSA Certified per CSA-22.2 No. 248.8, Class 1422-02, File 53787, RoHS Compliant | Series | LPJ |
Sub Brand | Bussmannâ˘, Low-Peak | Element Type | Dual |
Voltage Rating | 600 VAC, 300 VDC | UNSPSC | 27000000 |
Brand Name | Cooper Industries | Body Style | Cylindrical |
Application | Power Panelboards, Branch Circuit Breaker Panelboard Mains, Machinery Disconnects, Industrial Control | Dimensions | 1-1/16 in dia x 2-3/8 in L |
Item Name | Current-Limiting Fuse | Type | Time-Delay |
Fuse Class | Class J | Color Code | Yellow |
Terminal Connection | Clip | Construction | Melamine |
Automated Search Title | Bussmannâ˘, Low-Peak Current-Limiting Fuse Time-Delay Class J 60 A, 600 VAC, 300 VDC |
Packages
EA - 1 EA PER EA
