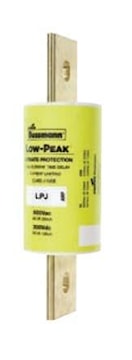

BREWS SUPPLY LPJ-4SP Bussmann™, Low-Peak Current-Limiting Fuse Time-Delay Class J 4 A, 600 VAC, 300 VDC
rlb lpj-4sp
BREWS SUPPLY LPJ-4SP Bussmann™, Low-Peak Current-Limiting Fuse Time-Delay Class J 4 A, 600 VAC, 300 VDC
Price
$20.06
/ EA
Inventory
Available for backorder
Unavailable for pick up
Bonnyville
Manufacturer:BREWS SUPPLY
Manufacturer #:LPJ-4SP
Description
Dual-element, time-delay fuse, 10 seconds (minimum) at 500% rated amps. Separate overload and short-circuit elements provide time delay for sizing of high inrush loads linked with Class J current limitation. Selective coordination ratio of 2:1 (within low-peak fuse family) prevents electrical shutdowns from extending beyond the failed circuit.
Specifications
| Brand Name | Cooper Industries | Sub Brand | Bussmann™, Low-Peak |
| Item Name | Current-Limiting Fuse | Type | Time-Delay |
| Series | LPJ | Voltage Rating | 600 VAC, 300 VDC |
| Amperage Rating | 4 A | Interrupt Rating | 300 kA at 600 VAC, 100 kA at 300 VDC |
| Fuse Class | Class J | Body Style | Cylindrical |
| Terminal Connection | Clip | Element Type | Dual |
| Color Code | Yellow | Construction | Melamine |
| Dimensions | 13/16 in dia x 2-1/4 in L | Standards | CE, UL Listed, Guide JFHR, File E56412, CSA Certified per CSA-22.2 No. 248.8, Class 1422-02, File 53787, RoHS Compliant |
| Application | Power Panelboards, Branch Circuit Breaker Panelboard Mains, Machinery Disconnects, Industrial Control |
Packages
| EA - 1 EA PER EA |
