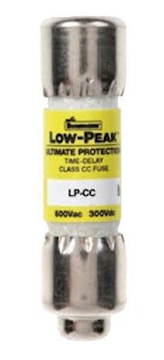

BREWS SUPPLY LP-CC-10 Bussmann™, Low-Peak Current-Limiting Fuse Time-Delay , Rejection Class CC 10 A, 600 VAC, 150 VDC
rlb lp-cc-10
BREWS SUPPLY LP-CC-10 Bussmann™, Low-Peak Current-Limiting Fuse Time-Delay , Rejection Class CC 10 A, 600 VAC, 150 VDC
Price
$13.81
/ EA
Inventory
Available for delivery
Unavailable for pick up
Bonnyville
Manufacturer:BREWS SUPPLY
Manufacturer #:LP-CC-10
Description
Time-delay, current-limiting, rejection-type fuse, 12 seconds (minimum) at 200% rated amps. Time-delay coupled with Class CC current-limiting response provides close sizing on small motor and relay circuits and maximum component short-circuit current rating protection. 200 kA interrupting rating provides high ratings for control circuit locations.
Specifications
| Brand Name | Cooper Industries | Sub Brand | Bussmann™, Low-Peak |
| Item Name | Current-Limiting Fuse | Type | Time-Delay , Rejection |
| Series | LP-CC | Voltage Rating | 600 VAC, 150 VDC |
| Amperage Rating | 10 A | Interrupt Rating | 200 kA at 600 VAC, 20 kA at 150 VDC |
| Fuse Class | Class CC | Body Style | Cylindrical |
| Terminal Connection | Clip | Element Type | Dual |
| Color Code | Yellow | Construction | Melamine |
| Dimensions | 13/32 in dia x 1-1/2 in L | Standards | UL Listed, Guide JDDZ, File E4273, CSA Certified Class 1422-02, File 53787, RoHS Compliant |
| Application | Specialized Circuits, Industrial Control |
Packages
| EA - 1 EA PER EA |
