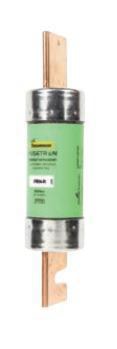

RIB BUS FRN-R-15
BREWS SUPPLY LTD. BUS FRN-R-15 FUSE CLASS RK5-200V-15A DUAL-ELEMENT
In Stock
Manufacturer:BREWS SUPPLY LTD.
Manufacturer #:BUS FRN-R-15
Description
Dual-element, time-delay fuse, 10 seconds (minimum) at 500% rated amps (8 seconds for 0-30 A sizes). Separate overload and short-circuit elements provide time delay for sizing as close as 125% of motor FLA. 2:1 selective coordination amp ratio (within the Fusetron RK5 fuse family) prevents overcurrent events from opening upstream Fusetron fuses.
Specifications
| Amperage Rating | 15 A | Interrupt Rating | 200 kA at 250 VAC, 20 kA at 125 VDC |
| Marketing Description | Dual-element, time-delay fuse, 10 seconds (minimum) at 500% rated amps (8 seconds for 0-30 A sizes). Separate overload and short-circuit elements provide time delay for sizing as close as 125% of motor FLA. 2:1 selective coordination amp ratio (within the Fusetron RK5 fuse family) prevents overcurrent events from opening upstream Fusetron fuses. | Product Type | 10 |
| Standards | UL Listed 248-12, File E4273, CSA Certified, C22.2 No. 248.12, Class 1422- 02, File 53787, CE | Series | FRN-R |
| Sub Brand | Bussmannâ˘, Fusetron | Element Type | Dual |
| Voltage Rating | 250 VAC, 125 VDC | UNSPSC | 27000000 |
| Brand Name | Cooper Industries | Body Style | Cylindrical |
| For Use With | HM600, R250 Fuse Block | Dimensions | 9/16 in dia x 2 in L |
| Item Name | Current-Limiting Fuse | Type | Time-Delay |
| Fuse Class | Class RK5 | Terminal Connection | Clip |
| Construction | Fiberglass | Automated Search Title | Bussmannâ˘, Fusetron Current-Limiting Fuse Time-Delay Class RK5 15 A, 250 VAC, 125 VDC |
Packages
EA - 1 EA PER EA
