PIC 240-11

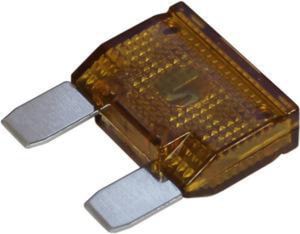

PICO OF CANADA LTD. 240-11 FUSE MAX BLD 40A ORG-
Available for Backorder
Manufacturer:PICO OF CANADA LTD.
Manufacturer #:240-11
Description
MAX Blade Fuse primarily used for under hood applications and are produced with high temperature polymer and silver plated blades. They replace the commonly used fusible wire or fusible link to protect a high current segment or system of the wiring harness. Industry standard colour coding indicates amp rating.
Specifications
| Amperage Rating | 40 A | Interrupt Rating | 1000 A at 32 VDC |
| Marketing Description | MAX Blade Fuse primarily used for under hood applications and are produced with high temperature polymer and silver plated blades. They replace the commonly used fusible wire or fusible link to protect a high current segment or system of the wiring harness. Industry standard colour coding indicates amp rating. | Product Type | 10 |
| Standards | J1888 SAE Standard | Series | MAX |
| Voltage Rating | 32 VDC | UNSPSC | 78120000 |
| Contact Material | Zinc Alloy | Brand Name | Pico |
| Application | For Under Hood Applications | Item Name | Fuse |
| Type | Blade | Color Code | Orange |
| Construction | Plastic Body | Automated Search Title | Fuse Blade 40 A, 32 VDC |
Packages
EA - 1 EA PER EA
